Get Permission Lone, Arshad, Kumar, and Parwaiz: Variable’s of COGS analysis for Orthognathic surgery based on preferences of two specialists- A perspective based study


Introduction

Cephalometric radiology was introduced in orthodontics in the 1930’s but it gained wider acceptance in practical application during last 20 yrs.1 Cephalometric norms are used for guiding the clinician during diagnosis & treatment planning especially in orthognathic surgical cases to identify skeletal dysgnathia & facial soft tissue disharmony by comparing with normative values.2 It is important for clinician to predict soft tissue changes resulting from hard tissue changes & the successful treatment of orthognathic surgical treatment depends on careful diagnosis. Literature has reported many studies which have attempted to evaluate the relation between hard tissue surgery & its effects on soft tissue. 3 Some studies have reported that clinician are more sensitive to certain profile aspect than patient & vice versa. Certain specific areas crucial to patient may not be actually crucial to clinician. 4 There are Various cephalometric analysis proposed by many authors based on hard tissue references with paradigm shift to soft tissues for orthognathic surgical cases which include: for COGS Dipaolo's Quadrilateral Analysis, Arnett's Soft Tissue Cephalometric Analysis (STCA). 5, 6, 7

Population of adults seeking orthodontic treatment requiring orthognathic surgery are increasing day by day. For diagnosing and formulating treatment plan of an orthognathic surgical case, analysis of facial, skeletal, and dental problems is a must. For this reason, a specialized cephalometric appraisal system called COGS concerning the hard tissue and soft tissue of the face had been developed by Burstone et al.,8 while dealing with orthognathic cases a team of specialists work in tandem which include Oral surgeon, Orthodontist, Anesthetist, Craniomaxillofacial surgeon, Neurosurgeon.

Cephalometric for orthognathic surgery analysis (COGS) developed by Burstone 8 is very popular and is commonly done cephalometric tracing for orthognathic cases. COGS analysis is a vast analysis and requires a good amount of time to analyze as it comprises of 37 parameters under seven headings which includes parameters related to: cranial bases, horizontal skeletal, vertical skeletal and dental lines and angles, Maxilla mandible relation, dental, facial form, lip position and form. These parameters are in linear, angular and ratio measurements. Though there are certain parameters which hold more importance for an oral surgeon and some for an orthodontist. An oral surgeon usually eyeballs on certain parameters to get the overall view of the case and understand the actual area of fault. While, an orthodontist considers some other parameters more important keeping in view the decompensation (reverse orthodontics), settling and finishing procedures to be performed in an orthognathic case.

The perception of facial profile differs between patients, dental professionals & peers, also the complexity of assessing orthognathic surgical treatment outcome definition differing of facial attractiveness & beauty by patient & clinician. 9, 10, 11 There is no such study done before to assess what variables are preferred from an oral surgeon and Orthodontist point of view respectively while dealing with an orthognathic case. So to our curiosity and interest we intended to perform this study to assess the preferential choice of variables for Oral surgeon and orthodontist with regard to various variables of cephalometric for orthognathic surgery analysis (COGS) developed by Burstone.

Materials and Methods

A preferential form was prepared consisting of all parameters of Burstone’s Cephalometric Analysis for Orthognathic Surgery (COGS) 11 under 7 heading and total of 37 parameters in one column. Three preferences were given for each parameter:

Preference 1 - Important parameter.

Twenty Oral and Maxillofacial surgeons and twenty Orthodontists with 2 years experience after post graduation were selected randomly for participation in this study. All the forms were sent through speed post, email and whatsapp mode and online questionnaire platform. All the participants were briefed about the study in the preference sheet (Figure 1) and asked to tick the parameter according to their preference while deciding a case of orthognathic surgery All the returned sheets were collected and data was tabulated in the excel sheet and sent for statistical analysis.

Preference sheet

Topic

This preference sheet is to know the preference of Oral surgeons and Orthodontists with regard to various variables/ parameters of Burstone Analysis (COGS) for diagnosing and treatment plan of Orthognathic surgeries.

Preference scale from 1 to 3

Tick mark ( ) the appropriate section depending upon your personal preference of parameter for diagnosing and formulating treatment plan for an Orthognathic case

Table 1

Preference sheet

S.No.

Variables /Parameter

Preference 1 Important Parameter

Preference 2 Slightly important parameter

Preference 3 Not so important

Cranial base

1

Posterior cranial base (Ar-PTM) (Linear)

2

Anterior cranial base (PTM-N) (Linear)

Horizontal (skeletal relation)

3

Facial convexity (N-A-PG) (Angle)

4

Maxillary protrusion (N-A [HP]) (Linear)

5

Mandibular protrusion (N-B [HP]) (Linear)

6

Chin protrusion (N-PG) (Linear)

Vertical (skeletal and dental relation )

7

Upper anterior face height (N-ANS) (Linear)

8

Lower anterior face height (ANS-GN) (Linear)

9

Upper posterior face height (PNS-N) (Linear)

10

Mandibular plane angle (MP-HP) (Angle)

11

Upper anterior dental height (UI-NF) (Linear)

12

Upper posterior dental height (U6-NF) (Linear)

13

Lower posterior dental height (L6-MP) (Linear)

14

Lower anterior dental height (L1-MP) (Linear)

Maxilla and mandible

15

Maxillary length (PNS-ANS) (Linear)

16

Mandibular ramus length (Linear)

17

Mandibular body length (Linear)

18

Chin depth (B-PG) (Linear)

19

Gonial angle (AR-GO-GN) (Angle)

Dental relationships

20

OP upper (OP-HP) (Angle)

21

OP lower- HP (Angle)

22

Upper incisors inclination (UI-NF) (Angle)

23

Lower incisors inclination (L1/GO-ME) (Angle)

24

Wits analysis (A-B [OP]) (Linear)

Preference 1 Important Parameter

Preference 2 Slightly important parameter

Preference 3 Not so important

Facial form

25

Facial convexity angle G Sn Pg’ (Angle)

26

Maxillary prognathism G-Sn (llel HP) (Linear)

27

Mandibular prognathism G Pg’ (llel HP) (Linear)

28

Vertical height ratio (G-sn/Sn-Me) (Linear)

29

L face ht-depth ratio (Ratio)

30

L face-Throat angle (Ratio)

Lip position and form

31

Nasolabial angle Cm-Sn-Ls (Angle)

32

Upper lip protrusion Ls to (Sn Pg’) (Linear)

33

Lower lip protrusion Li to (Sn Pg’) (Linear)

34

Mentolabial sulcus Si to (Li Pg’) (Linear)

35

Vertical lip-chin (Ratio)

36

Maxillary incisor exposure Stms-U1 (Linear)

37

Interlabial gap Stms-Stmi (HP) (Linear)

Statistical methods

The data derived was qualitative in nature. The statistical software SPSS 22.0 ver 3.2.2 were used for the analysis of the data. Microsoft word and excel sheets have been used to generate graphs, tables etc. Descriptive and inferential statistical analysis has been carried out in the present study.

Results

The results showed the percentage wise preference of the parameters/ variables of COGS analysis by two specialists- Oral surgeons and Orthodontists. 75% preference was considered as the majority among the three preferences.

The parameters/variables preferred as important, by majority (75%) of Oral surgeons were

  1. Maxillary protrusion (N-A [HP] (Linear 20(100%

  2. Mandibular protrusion (N-B [HP] (Linear 20(100%

  3. Chin protrusion (N-PG (Linear 15(75%

  4. Upper anterior face height (N-ANS (Linear 16(80%

  5. Lower anterior face height (ANS-GN (Linear 19(95%

  6. Maxillary length (PNS-ANS (Linear 20(100%

  7. Mandibular body length (Linear 20(100%

  8. Maxillary incisor exposure Stms-U1 (Linear 20(100%

  9. Face-Throat (Angle 16(80%)

The parameters/variables preferred as important by majority (75%) of Orthodontists were

  1. All parameters in vertical skeletal and dental except, upper. anterior face height, upper posterior face height and lower. posterior dental height.

  2. All parameters in horizontal skeletal lines except chin protrusion.

  3. All parameters in Maxilla and Mandible relation except chin depth.

  4. All parameters in horizontal skeletal relation.

  5. All parameters in dental relationship were marked important (100%).

  6. All parameters in facial form except lower face height-depth ratio and lower face throat angle.

  7. All parameters in lip position and form except interlabial gap.

The parameters/variables Equally not preferred as important parameter by both the specialist

  1. Face ht-depth ratio (Ratio (0%).

  2. Anterior cranial base (PTMN (Linear (0%)

Linear variables were marked as important parameter by majority of oral surgeons followed by ratio variables and angular variable.

Linear, ratio and angular variables were equally marked important by orthodontists,

Skeletal measurements were preferred by oral and maxillofacial surgeons followed by soft tissue & dental relationship form, while as Orthodontists preferred Soft tissue, dental measurements followed by skeletal parameters. Cranial base measurements were not so marked as 1st preference by both the specialists.

One ratio of L face-Throat angle (Ratio) was marked important parameter by (80%) of Oral & Maxillofacial surgeon than Orthodontists (20%),

Table 2

Correlation of preference between oral surgeons and orthodontists by spearman’s rank correlation

Variable / Parameters

N

Spearman R

t-value

p-value

1.Posterior cranial base (Ar-PTM) (Linear)

20

0.1021

0.4353

0.6685

2.Anterior cranial base (PTM-N) (Linear)

20

0.4644

2.2249

0.0391*

3.Facial convexity (N-A-PG) (Angle)

20

-

-

-

4.Maxillary protrusion (N-A [HP]) (Linear)

20

-

-

-

5.Mandibular protrusion (N-B [HP]) (Linear)

20

-

-

-

6.Chin protrusion (N-PG) (Linear)

20

-0.1816

-0.7833

0.4436

7.Upper anterior face height (N-ANS) (Linear)

20

0.0000

0.0000

1.0000

8.Lower anterior face height (ANS-GN) (Linear)

20

0.6882

4.0249

0.0008*

9.Upper posterior face height (PNS-N) (Linear)

20

0.4364

2.0580

0.0544

10. Mandibular plane angle (MP-HP) (Angle)

20

-

-

-

11.Upper anterior dental height (UI-NF) (Linear)

20

-

-

-

12.Upper posterior dental height (U6-NF) (Linear)

20

0.3669

1.6733

0.1116

13.Lower posterior dental height (L6-MP) (Linear)

20

0.4286

2.0125

0.0594

14.Lower anterior dental height (L1-MP) (Linear)

20

-

-

-

15.Maxillary length (PNS-ANS) (Linear)

20

-

-

-

16.Mandibular ramus length (Linear)

20

-

-

-

17.Mandibular body length (Linear)

20

-

-

-

18.Chin depth (B-PG) (Linear)

20

0.0503

0.2135

0.8334

19.Gonial angle (AR-GO-GN) (Angle)

20

-

-

-

20.OP upper (OP-HP) (Angle)

20

-

-

-

21.OP lower- HP (Angle)

20

-

-

-

22.Upper incisors inclination (UI-NF) (Angle)

20

-

-

-

23.Lower incisors inclination (L1/GO-ME) (Angle)

20

-

-

-

24.Wits analysis (A-B [OP]) (Linear)

20

-

-

-

25.Facial convexity angle G Sn Pg' (Angle)

20

0.2100

0.9115

0.3741

26.Maxillary prognathism G-Sn (llel HP) (Linear)

20

-0.4543

-2.1633

0.0442*

27.Mandibular prognathism G Pg' (llel HP) (Linear)

20

-

-

-

28.Vertical height ratio (G-sn/Sn-Me) (Linear)

20

-0.3126

-1.3964

0.1796

29.L face ht-depth ratio (Ratio)

20

-

-

-

30.L face-Throat angle (Ratio)

20

-0.0481

-0.2044

0.8404

31.Nasolabial angle Cm-Sn-Ls (Angle)

20

-

-

-

32.Upper lip protrusion Ls to (Sn Pg') (Linear)

20

-

-

-

33.Lower lip protrusion Li to (Sn Pg') (Linear)

20

-

-

-

34.Mentolabial sulcus Si to (Li Pg') (Linear)

20

-

-

-

35.Vertical lip-chin (Ratio)

20

-

-

-

36.Maxillary incisor exposure Stms-U1 (Linear)

20

-

-

-

37.Interlabial gap Stms-Stmi (HP) (Linear)

20

0.0306

0.1297

0.8982

[i] *p<0.05= significant

Table 3

Agreement of preference between two oral and maxillofacial surgeons and Orthodontists in assessment of different parameters by Weighted Kappa statistic.

Parameters

Agreement

Kappa

Z-value

P-value

1.Posterior cranial base (Ar-PTM) (Linear)

40.00%

0.0000

0.0000

0.5000

2.Anterior cranial base (PTM-N) (Linear)

70.00%

0.3548

2.0800

0.0189*

3.Facial convexity (N-A-PG) (Angle)

12.50%

0.0000

-

-

4.Maxillary protrusion (N-A [HP]) (Linear)

90.00%

0.0000

-

-

5.Mandibular protrusion (N-B [HP]) (Linear)

75.00%

0.0000

-

-

6.Chin protrusion (N-PG) (Linear)

50.00%

-0.1765

-0.8100

0.7916

7.Upper anterior face height (N-ANS) (Linear)

50.00%

0.0000

0.0000

0.5000

8.Lower anterior face height (ANS-GN) (Linear)

95.00%

0.6429

3.0800

0.0010*

9.Upper posterior face height (PNS-N) (Linear)

70.00%

0.4000

1.9500

0.0255*

10. Mandibular plane angle (MP-HP) (Angle)

17.50%

0.0000

0.0000

0.5000

11.Upper anterior dental height (UI-NF) (Linear)

7.50%

0.0000

-

-

12.Upper posterior dental height (U6-NF) (Linear)

27.50%

0.0000

0.0000

0.5000

13.Lower posterior dental height (L6-MP) (Linear)

30.00%

0.0000

-

-

14.Lower anterior dental height (L1-MP) (Linear)

7.50%

0.0000

-

-

15.Maxillary length (PNS-ANS) (Linear)

-

-

-

-

16.Mandibular ramus length (Linear)

35.00%

0.0000

0.0000

0.5000

17.Mandibular body length (Linear)

-

-

-

-

18.Chin depth (B-PG) (Linear)

37.50%

0.0000

-

-

19.Gonial angle (AR-GO-GN) (Angle)

5.00%

0.0000

0.0000

0.5000

20.OP upper (OP-HP) (Angle)

7.50%

0.0000

-

-

21.OP lower- HP (Angle)

7.50%

0.0000

-

-

22.Upper incisors inclination (UI-NF) (Angle)

7.50%

0.0000

-

-

23.Lower incisors inclination (L1/GO-ME) (Angle)

7.50%

0.0000

-

-

24.Wits analysis (A-B [OP]) (Linear)

7.50%

0.0000

-

-

25.Facial convexity angle G Sn Pg' (Angle)

17.50%

0.0000

0.0000

0.5000

26.Maxillary prognathism G-Sn (llel HP) (Linear)

22.50%

0.0000

0.0000

0.5000

27.Mandibular prognathism G Pg' (llel HP) (Linear)

17.50%

0.0000

0.0000

0.5000

28.Vertical height ratio (G-sn/Sn-Me) (Linear)

20.00%

0.0000

-

-

29.L face ht-depth ratio (Ratio)

25.00%

0.0000

-

-

30.L face-Throat angle (Ratio)

57.50%

0.0860

1.1200

0.1318

31.Nasolabial angle Cm-Sn-Ls (Angle)

40.00%

0.0000

-

-

32.Upper lip protrusion Ls to (Sn Pg') (Linear)

5.00%

0.0000

0.0000

0.5000

33.Lower lip protrusion Li to (Sn Pg') (Linear)

5.00%

0.0000

0.0000

0.5000

34.Mentolabial sulcus Si to (Li Pg') (Linear)

20.00%

0.0000

-

-

35.Vertical lip-chin (Ratio)

77.50%

0.0000

-

-

36.Maxillary incisor exposure Stms-U1 (Linear)

-

-

-

37.Interlabial gap Stms-Stmi (HP) (Linear)

42.50%

0.0000

-

-

[i] *p<0.

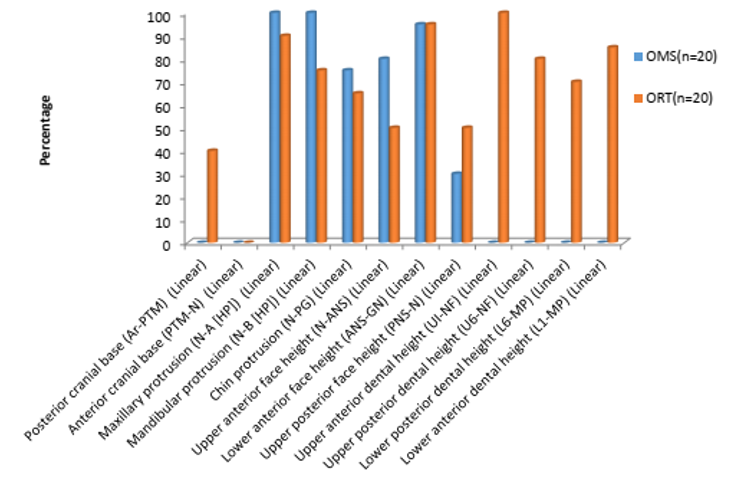

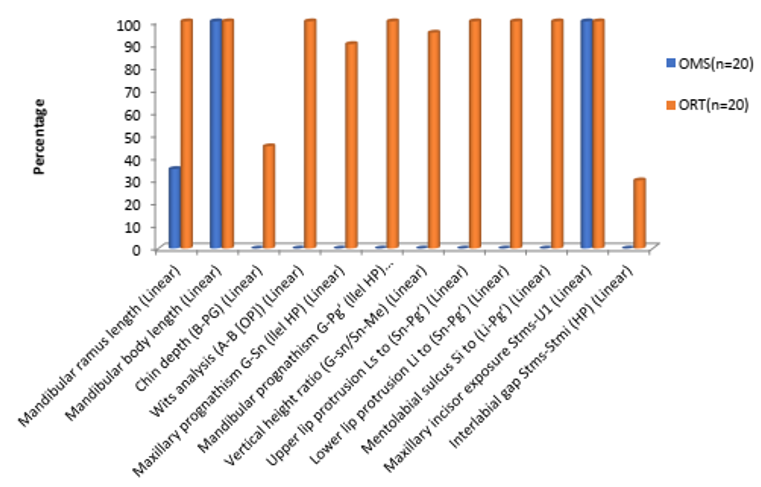

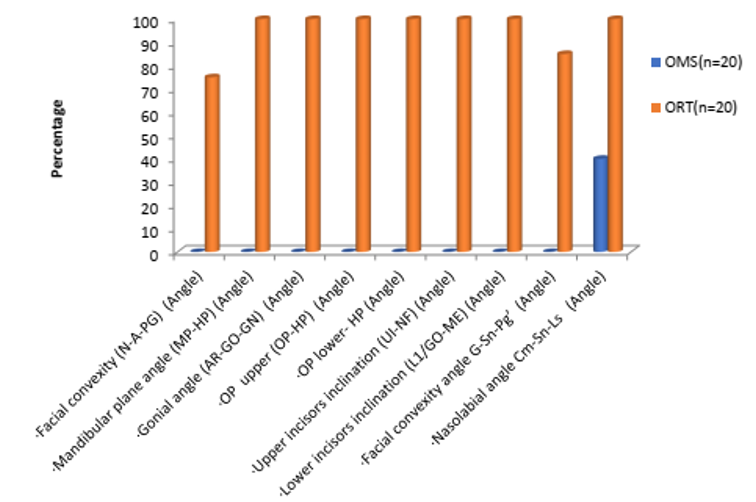

Figure 1, Figure 2, Figure 3, Figure 4 : Variable preferrence between oral surgeons and orthodontists (preferred as important)

Graph 1
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/e821593a-84c9-4125-8c63-0a6bc2926832image1.png

Graph 2
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/e821593a-84c9-4125-8c63-0a6bc2926832image2.png

Graph 3
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/e821593a-84c9-4125-8c63-0a6bc2926832image3.png

Graph 4
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/e821593a-84c9-4125-8c63-0a6bc2926832image4.png

Discussion

A collaborative approach between the orthodontist and maxillofacial surgeon is imperative to successfully devise and execute a comprehensive treatment plan with predictable outcomes. Typically, most patients will solicit surgical evaluation based primarily on the recommendation of the treating orthodontist. The patient may present to the surgeon, having already implicitly selected a preferred treatment option based on the treatment focus of the orthodontist. 12 In diagnosis of orthognathic surgical case, the cephalometric norms play a major role. 13 Many studies 14 have used composite analysis for orthognathic surgery cases to arrive at a proper diagnosis and treatment plan for an orthognathic case.

In our study, we made an attempt to find out the variables which are of much preference to Oral surgeons and orthodontists while analyzing an orthognathic case using COGS analysis. Our study revealed that Skeletal measurements were preferred by majority of oral surgeons followed by soft tissue & dental relationship form, while as, Orthodontists preferred Soft tissue, dental measurements followed by skeletal parameters., This can be attributable to the fact that oral surgeon is more interested to know the skeletal lengths for determining as to what extent BSSO maxillary advancement and mandibular setback or Bi-jaw surgery is to be performed depending upon the case. The parameters which were preferred as 100% important were Maxillary protrusion, Mandibular protrusion, Maxillary length, Mandibular body length, Maxillary incisor exposure. These parameters help in determining the Excessive maxillary and mandibular deficiency or prognathism.

Lower anterior face height (ANS-Gn) was considered important by 95 % and Upper anterior face height (N-ANS) was considered important by 80% of oral surgeons which holds importance while dealing with cases of long face patients requiring Orthognathic surgery.

L face-Throat (Angular measurement) was considered important by 80% and Chin protrusion by 75% oral surgeons. These parameters help to assess whether, genioplasty, chin augmentation, reduction sliding in asymmetric chin is to be done. Whereas, orthodontists preferred these parameters as, slightly important parameters.

Cranial base parameters were not considered important by both Oral surgeons and Orthodontists. Since such parameters are more useful to craniomaxillofacial surgeons who have expertise in skull surgeries, especially in syndromic patients.

For Orthodontists; Soft tissue, dental measurements followed by skeletal parameters were of much preference. Linear, ratio and angular variables were equally marked important by Orthodontists. All vertical (dental and skeletal relation), Dental relationships were important parameters for majority of orthodontist because these are used to determine the extent of decompensation (reverse orthodontics) which is included in pre surgical orthodontic phase done before the Orthognathic surgery.

Limitation & Further scope

A large sample of Orthodontists and Oral surgeons with higher experience in orthognathic cases could have been included. More such studies related to other analysis like Quadrilateral analysis, Arnett analysis which are beneficial for diagnosing and formulating treatment plan of Orthognathic case can be performed and a composite analysis can be developed.

Conclusion

This study concluded that there is a varied perspective regarding the preference of COGS variables by Oral surgeons and Orthodontists. Though there was some mutual agreement also regarding some of the parameters i.e: Anterior cranial base (Ptm-N), Lower anterior face height (Ans-Gn), Upper posterior face height (PNS-N).

Skeletal Variables & linear measurements are preferred as important by majority of Oral surgeons. Whereas, for majority of Orthodontist, soft tissue, dental and skeletal are preferred as important, as well as, equal preference was given to linear, angular and ratio measurements.

This study was aimed to determine the perspective about the variables of COGS analysis, as to which variables are preferred as: 1) Important, 2) Slightly important and 3) Not important for oral surgeon and Orthodontists respectively. COGS analysis is an extensive one and all parameters hold significance. This short study made an attempt to know which parameters are eyeballing for an oral surgeon and orthodontist in diagnosing an orthognathic surgical case and to arrive at an immediate treatment plan for an Orthognathic case reporting in a busy OPD.

Conflict of Interest

The authors declare no relevant conflicts of interest.

Source of Funding

None.

References

1

T Rakosi I Jonas T M Graber Colour atlas of dental medicine Orthodontic diagnosisThieme Publications1993

2

TR Flynn RI Ambrogio SJ Zeichner Cephalometric norms for orthognathic surgery in black American adultsJ Oral Maxillofac Surg198947130910.1016/0278-2391(89)90120-1

3

MT Chew Soft and hard tissue changes after bimaxillary surgery in Chinese Class III patientsAngle Orthod200575695963

4

JJ Wilmot HD Barber DG Chou KW Vig Associations between severity of dentofacial deformity and motivation for orthodontic-orthognathic surgery treatmentAngle Orthod1993634283810.1043/0003-3219(1993)063<0283:ABSODD>2.0.CO;2

5

CJ Burstone RB James H Legan GA Murphy LA Norton Cephalometrics for orthognathic surgeryJ of Oral Surg196536426977

6

Di Paolo R J Philip C Maganzini A L Hirce J D The quadrilateral analysis: An individualized skeletal assessmentAm J Orthod19838311932

7

GW Arnett JS Jelic J Kim DR Cummings A Beress CM Worley Soft tissue cephalometric analysis: diagnosis and treatment planning of dentofacial deformityAm J Orthod Dentofac Orthop1999116323953

8

C Burstone R James H Legan G Murphy L Norton Cephalometrics for orthognathic surgeryJ Oral Surg196536426977

9

SM Cochrane SM Cunningham SP Hunt A comparison of the perception of facial profile by the general public and 3 groups of cliniciansInt J Adult Orthodon Orthognath Surg19991442915

10

C Phillips T Griffin E Bennett Perception of facial attractiveness by patients, peers and professionalsInt J Adult Orthod Orthognath Surg199510212735

11

J Soh M T Chew H B Wong A comparative assessment of the perception of Chinese facial profile estheticsAm J Orthod Dentofacial Orthop20051276692910.1016/j.ajodo.2004.02.018

12

MD Khechoyan Orthognathic Surgery: General Considerations David YSemin Plast Surg20132731336

13

K Trivedi S Singh DM Shivamurthy J Doshi T Shyagali B Patel Analysis of cephalometrics for orthognathic surgery: Determination of norms applicable to Rajasthani populationNatl J Maxillofac Surg201012102710.4103/0975-5950.79209

14

T Sunil HA Amitha NC Gowda Composite Cephalometric Analysis for Orthognathic Surgery (CCAOS)Hmlyn Jr Med Surg20223241010.47310/Hjms.2022.v03i02.002



jats-html.xsl


This is an Open Access (OA) journal, and articles are distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as appropriate credit is given and the new creations are licensed under the identical terms.

Article type

Original Article


Article page

65-71


Authors Details

Parveen Akhtar Lone, Faisal Arshad, Jasbinder Kumar, Sabiha Parwaiz


Article History

Received : 04-06-2022

Accepted : 16-06-2022


Article Metrics


View Article As




Downlaod Files
